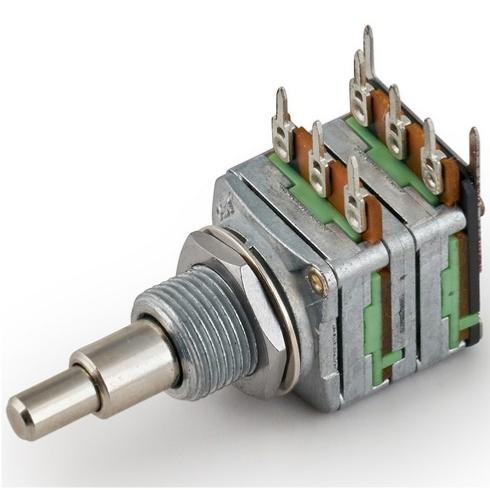

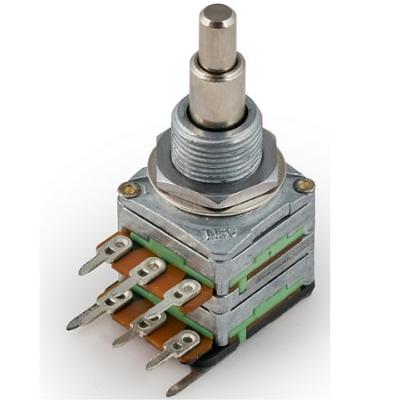

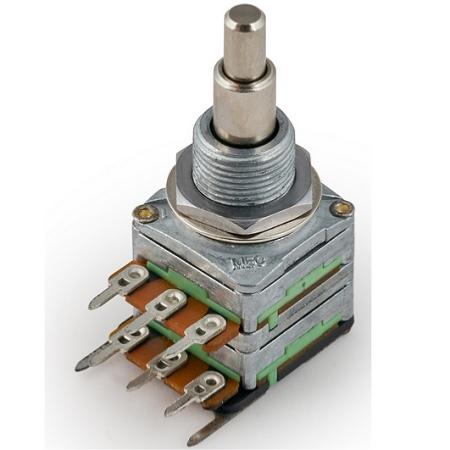

POTENTIOMETRE ETAGE BALANCE MEC LINEAIRE 100K et AUDIO 500K
  • POTENTIOMETRE ETAGE BALANCE MEC LINEAIRE 100K et AUDIO 500K
  • POTENTIOMETRE ETAGE BALANCE MEC LINEAIRE 100K et AUDIO 500K

POTENTIOMETRE ETAGE BALANCE MEC LINEAIRE 100K et AUDIO 500K

MEC
(Code: M-85150)
En Stock
27,00 €
50g
Jusqu'à 10X
sans frais
Frais de port
4.90€* en France
métropolitaine
Livraison rapide
en France

et à l'international
Description
POTENTIOMETRE ETAGE BALANCE MEC LINEAIRE 100K et AUDIO 500K

content

  • dual mono stacked potentiometer
  • concentric shaft
  • R1 = B100K (resistance 100 kOhm, (B) linear)
  • R2 = A500K/cc (resistance 500 kOhm (A) logarithmic, center detent)
  • suitable for use as tone control for active electronics (R1) + volume control for passive pickups (R2)
  • M10 x 0.75 mm threads
  • mounting diameter 10 mm
  • thread length 9 mm
  • solid shaft
  • shaft length 14 mm (inner), 7 mm (outer)
  • shaft diameter 4 mm (inner), 6 mm (outer)
  • incl. nut and washer
  • dimensions incl. lugs (L x W x H) 24 x 16 x 17 mm
