POTENTIOMETRE 250K PUSH/PULL AUDIO DPDT ALLPARTS EP-5585-000
  • POTENTIOMETRE 250K PUSH/PULL AUDIO DPDT ALLPARTS EP-5585-000
  • POTENTIOMETRE 250K PUSH/PULL AUDIO DPDT ALLPARTS EP-5585-000
  • POTENTIOMETRE 250K PUSH/PULL AUDIO DPDT ALLPARTS EP-5585-000
  • POTENTIOMETRE 250K PUSH/PULL AUDIO DPDT ALLPARTS EP-5585-000

POTENTIOMETRE 250K PUSH/PULL AUDIO DPDT ALLPARTS EP-5585-000

ALLPARTS
(Code: A250K-PP-EP-5585-000)
En Stock
Format US
16,00 €
30g
Jusqu'à 10X
sans frais
Frais de port
4.90€* en France
métropolitaine
Livraison rapide
en France

et à l'international
Description

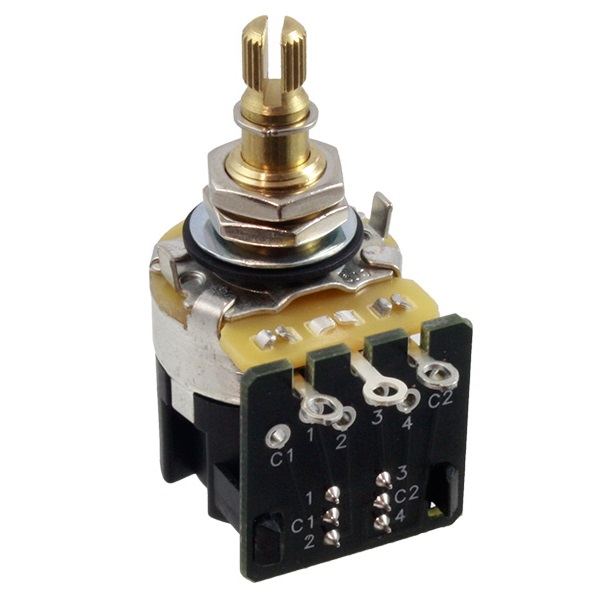

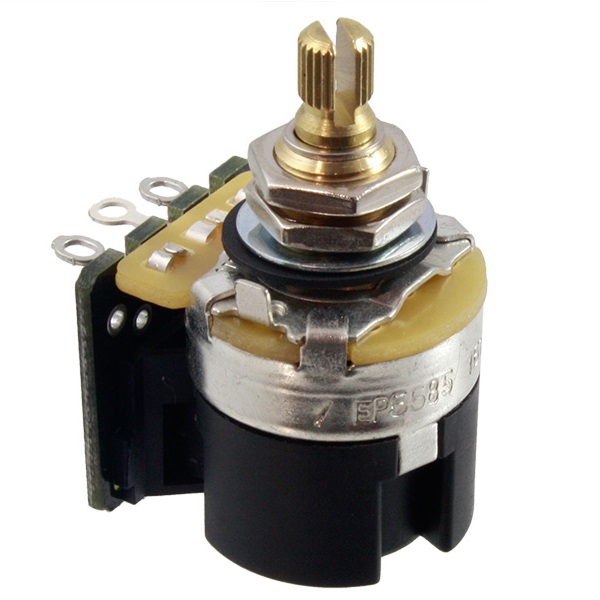

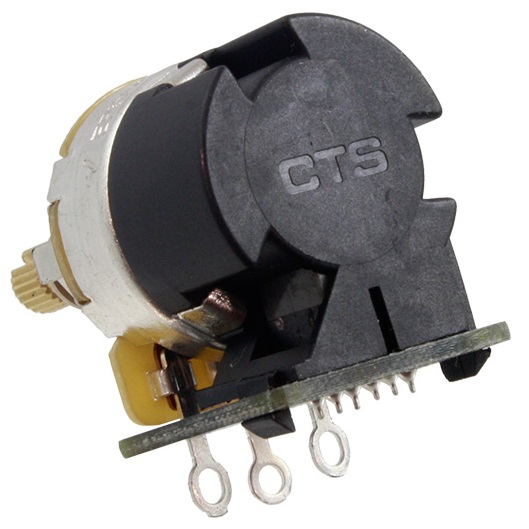

POTENTIOMÈTRE A250K ALLPARTS SPLIT SHAFT PUSH/PULL

Un Push/Pull un peu moins haut que la moyenne avec une fiche plus facile à souder

Push/pull : On doit tirer pour actionner le potentiomètre et ensuite appuyer dessus pour le remettre dans sa première position.  C'est donc littéralement un push/pull (pousser/tirer).

Audio

Norme DPDT (transparent. Bonne qualité. Ne colore pas le son)

Format US

9,4mm de diamètre pour la partie filetée.


Axe cannelé (split shaft)

6mm de diamètre pour l'axe.


Hauteur de la tige : 18mm (sans être relevée) 24mm relevée
25mm environ pour la partie sous le bois


45mm hauteur totale non relevée

Rappel :
Audio (A) = volume
Linéaire (B) = tonalité

Référence Allparts : EP-5585-000

Conditionnement Allparts
