MICRO SCHALLER INSTRUMENT ACOUSTIQUE CELLULE OYSTER S/P

Micro cellule pour guitare Folk.

Fixation interne du capteur par pâte et fixation au niveau de l'attache courroie.

Poids : 30 grammes

Diamètre : 27mm

Livré avec autocollant

Longueur du câble : 45cm

Référence produit Schaller 16050103

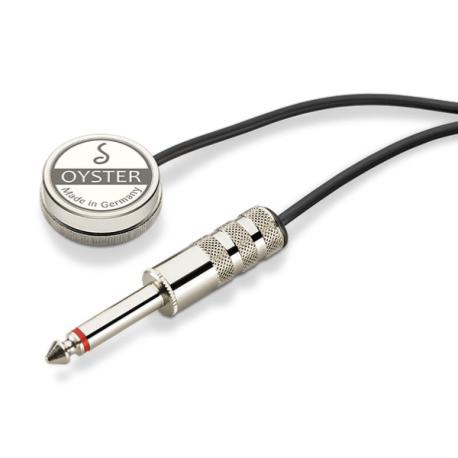

Schaller Oyster S/P – balanced new sound in a modern design

The Schaller Oyster has been a classic contact pickup for decades. With its compact size and low weight, it can be easily mounted on guitar tops for spontaneous gigs or permanently installed in the body of acoustic instruments.
The new oyster has become a little bit slimmer and convinces thanks to the new piezo technology with an even more balanced sound. This makes it the perfect pickup system for guitars, basses, ukuleles, mandolins and other acoustic stringed instruments.
The Oyster is available in different cable lengths with a 6.35 mm (1/4″) jack socket or plug, as a single or double pickup, classic nickel-plated or in pure sound brass.

Unique features of the Schaller Oyster Piezo-Pickup



• Piezo contact pickup: A sensor pickup for retrofitting or easy installation on and in an acoustic stringed instrument.
• New balanced piezo sound design, with lifelike and dynamic reproduction of the instrument sound, without active circuitry or preamplifiers.
• The excellent sound result is achieved by a perfect interaction of membrane and piezo element.



Technical details



• Oyster shell material: brass
• Weight: 12 grams per Oyster shell
• Available finishes: pure brass or nickel
• Passive circuitry: no power supply like battery needed
• Resonance frequency: 6.0kHz ±0.5kHz
• Max. Resistance (Zr): 500 Ω
• Capacitance: 14000 pF ± 30% pF
• Special feature: also suitable for percussive playing



Scope of supply



• Oyster Model S/P: with 1 x Oyster shell as shown in the PDF
• 4 x adhesive foils
