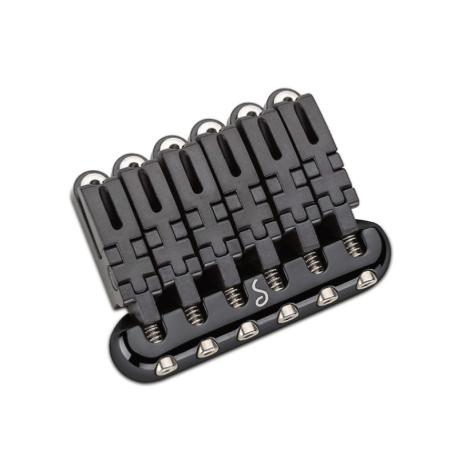

CORDIER SCHALLER HANNES NOIR

Technical specifications

• String spacing (E-e): 54 mm
• String spacing individual: 10.8 mm
• String radius: adjustable from 9,5" to 20"
• Minimal G/d string height above body: 10.3 mm
• Maximum height adjustment: 2.5 mm
• Maximum string gauge: 0.064
• Weight: 98 gram, 156g with accessories
• Please note: not suitabel for left-handed models!

Scope of supply

• 1 x string mounting bar (anchor plate) with 6 x Hannes saddles
• 2 x wood screws LK 2.2 x 9.5
• 2 x mounting screws SK M5 x 50 (if necessary, shorten yourself)
• 2 x screw sockets: 13.0 mm
• 3 x allen keys: 2.0, 2.5 and 3.0 mm

The bridge is regularly equipped with height adjustment screws with a length of 5.95 mm.
